Product Name : AP7920
Item# : 101854-196
Model : 101754-196
Was Price: CNY0/pc
Now Price : CNY0/pc
Last update : 2017.10.26
Manufacturer :
More Picture:

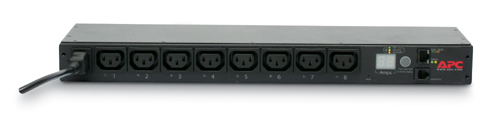

Switched Rack PDU

Rack PDU, Switched, 1U, 12A/208V, 10A/230V, (8)C13

APC Switched Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC-320 C14, Cord Length:6.5 feet ( 1.98 meters ), Output: 208V, 230V, Output Connections: IEC 320 C13

Includes: Installation guide, Rack Mounting brackets, User Manual

Switched Rack PDU Features & Benefits

Availability
Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Power Delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Output

Nominal Output Voltage
208V, 230V
Maximum Total Current Draw per Phase
10A
Different voltages and corresponding amperages
10A @ 230V, 12A @ 208V
Output Connections
(8) IEC 320 C13

Input

Nominal Input Voltage
200V, 208V, 230V
Input Frequency
50/60 Hz
Regulatory Derated Input Current (North America)
12A
Input Connections
IEC-320 C14
Cord Length
6.5 feet (1.98 meters)
Number of Power Cords
1
Acceptable Input Voltage
200-240 VAC
Maximum Input Current per phase
15A
Load Capacity
2300 VA

Physical

Net Weight
5.00 lbs. (2.27 kg)
Maximum Height
1.73 inches (44 mm)
Maximum Width
17.50 inches (445 mm)
Maximum Depth
4.25 inches (108 mm)
Shipping Weight
7.60 lbs. (3.45 kg)
Shipping Height
2.75 inches (70 mm)
Shipping Width
18.50 inches (470 mm)
Shipping Depth
13.50 inches (343 mm)
Color
Black

Environmental

Operating Environment
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)

Conformance

Regulatory Approvals
cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI
Standard Warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH SVHC
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Battery Directive
Compliant
Battery Notes
Contains Lithium Coin Cell
Other Environmental Compliance
China RoHS
